CMM Offroad JK/JKU Full Steering
CMM Offroad JK/JKU Full Steering
Regular price
$1,684.00
Regular price
Sale price
$1,684.00
Unit price
/
per
Direct replacement steering. No modification to factory components required.

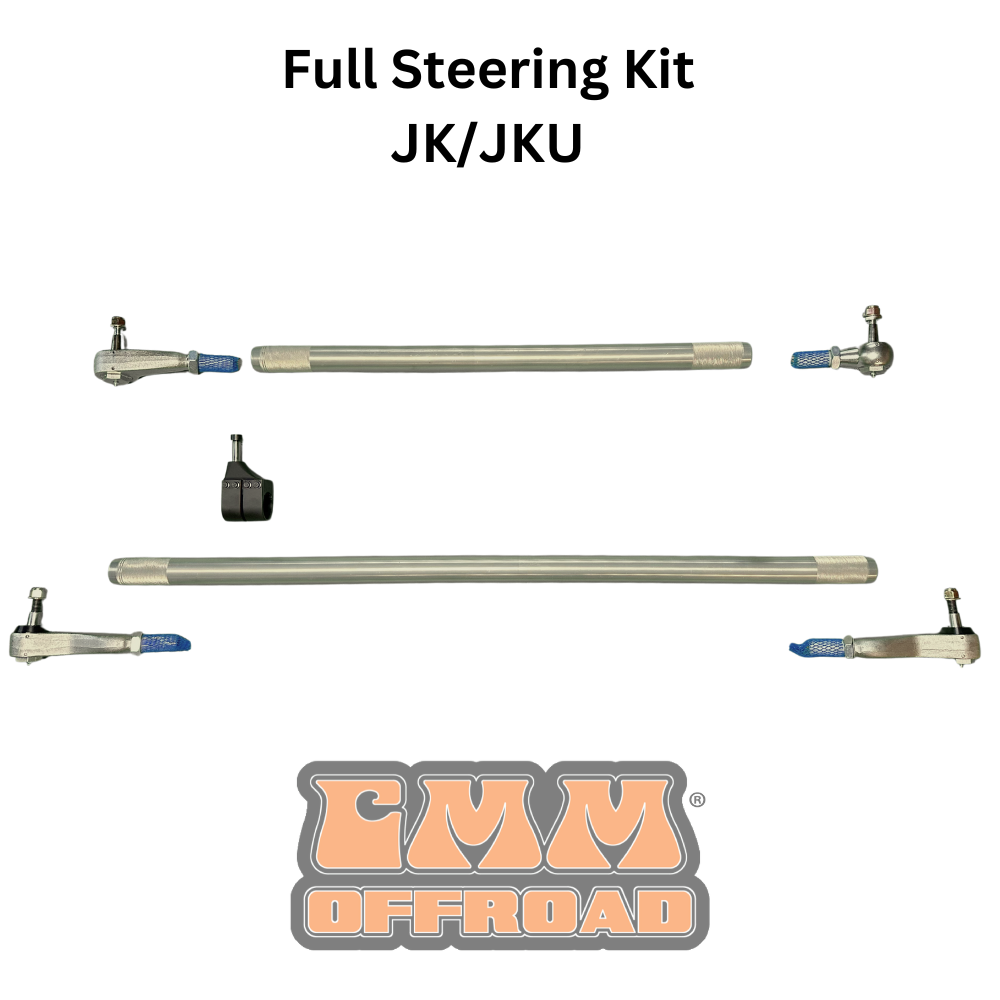

Package Includes a Tie Rod, a Drag-Link & a Steering Stabilizer Mounting Bracket (Tie Rod Side Only).
Product information -

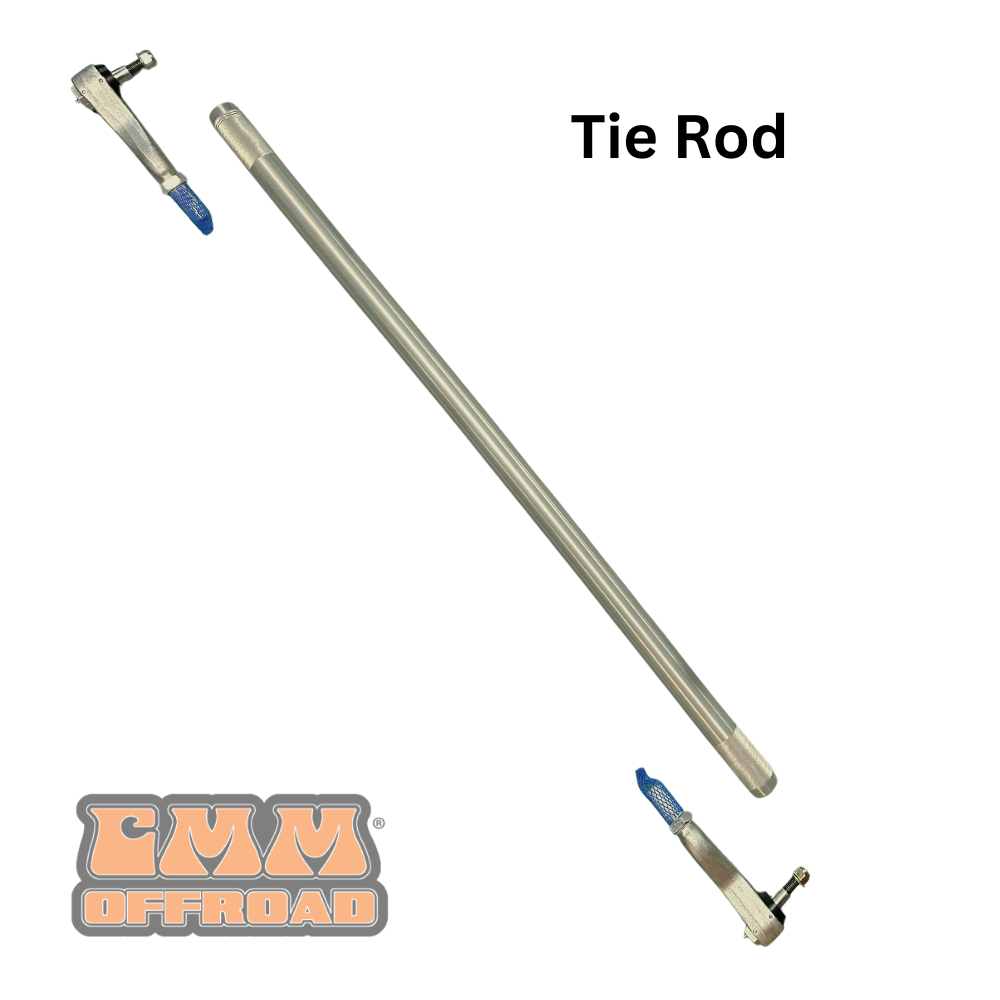

JK/JKU Tie Rod:
- Fits:
- Wrangler JK/JKU
- Years : 2007 - 2018
- Models : Sport, Sahara, Rubicon with Standard Width OEM Axles
- Machined in house from solid 7075-T6511 aluminum with Left and Right hand 1"-14 thread
- Designed to withstand deflection
- Anodize to prevent corrosion giving it the CMM Color
- The Tie Rod is designed around using our bracket and keeping the stabilizer in the stock location
- Forged Chromoly, Heat Treated Steel ends, completely greaseable and rebuildable

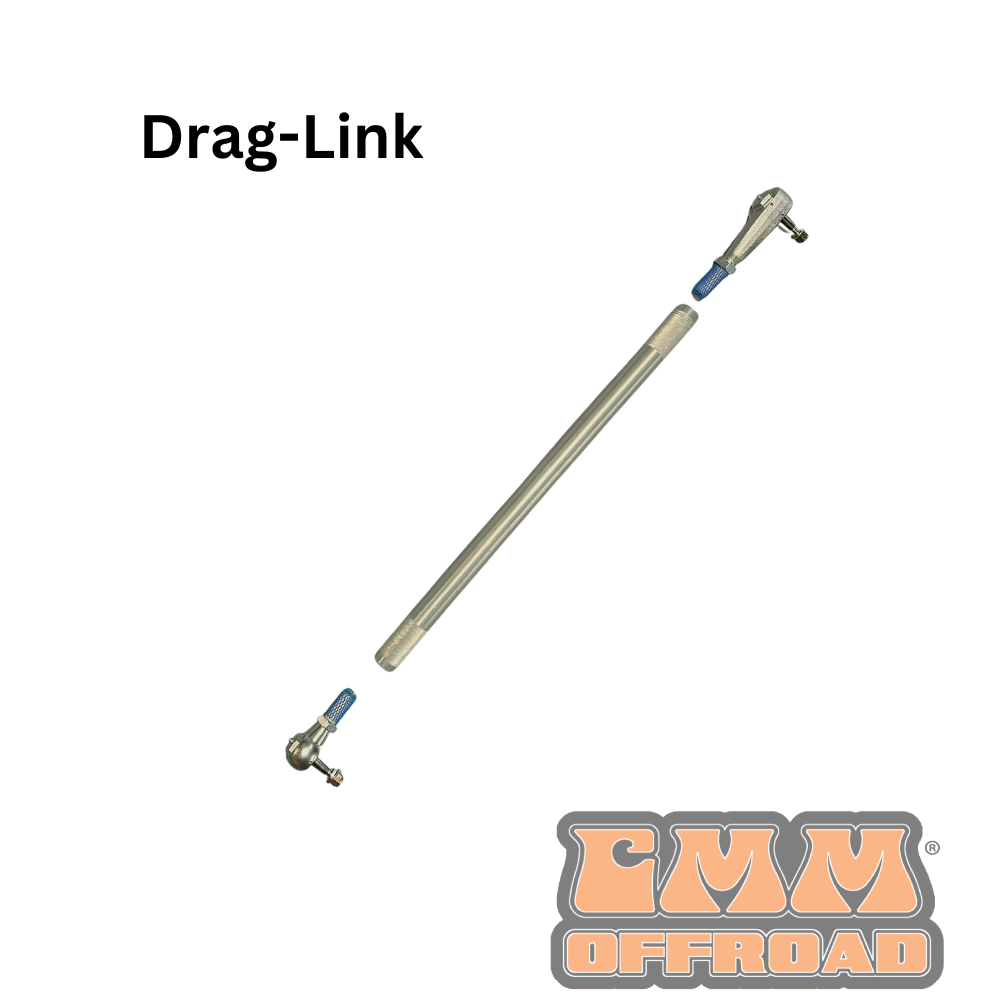

JK/JKU Drag-Link:
- Fits:
- Wrangler JK/JKU
- Years : 2007 - 2018
- Models : Sport, Sahara, Rubicon with Standard Width OEM Axles
- Machined in house from solid 7075-T6511 aluminum with Left and Right hand 1"-14 thread
- Designed to withstand deflection
- Mounts in standard lower position (Under Knuckle,Under Pitman Arm)
- Left and Right hand threaded - (Designed for in-vehicle adjustment) - Just loosen your Jam nuts and adjust!
- Engineered to work with the JK and JKU Ackerman Angle
- Anodize to prevent corrosion giving it the CMM Color

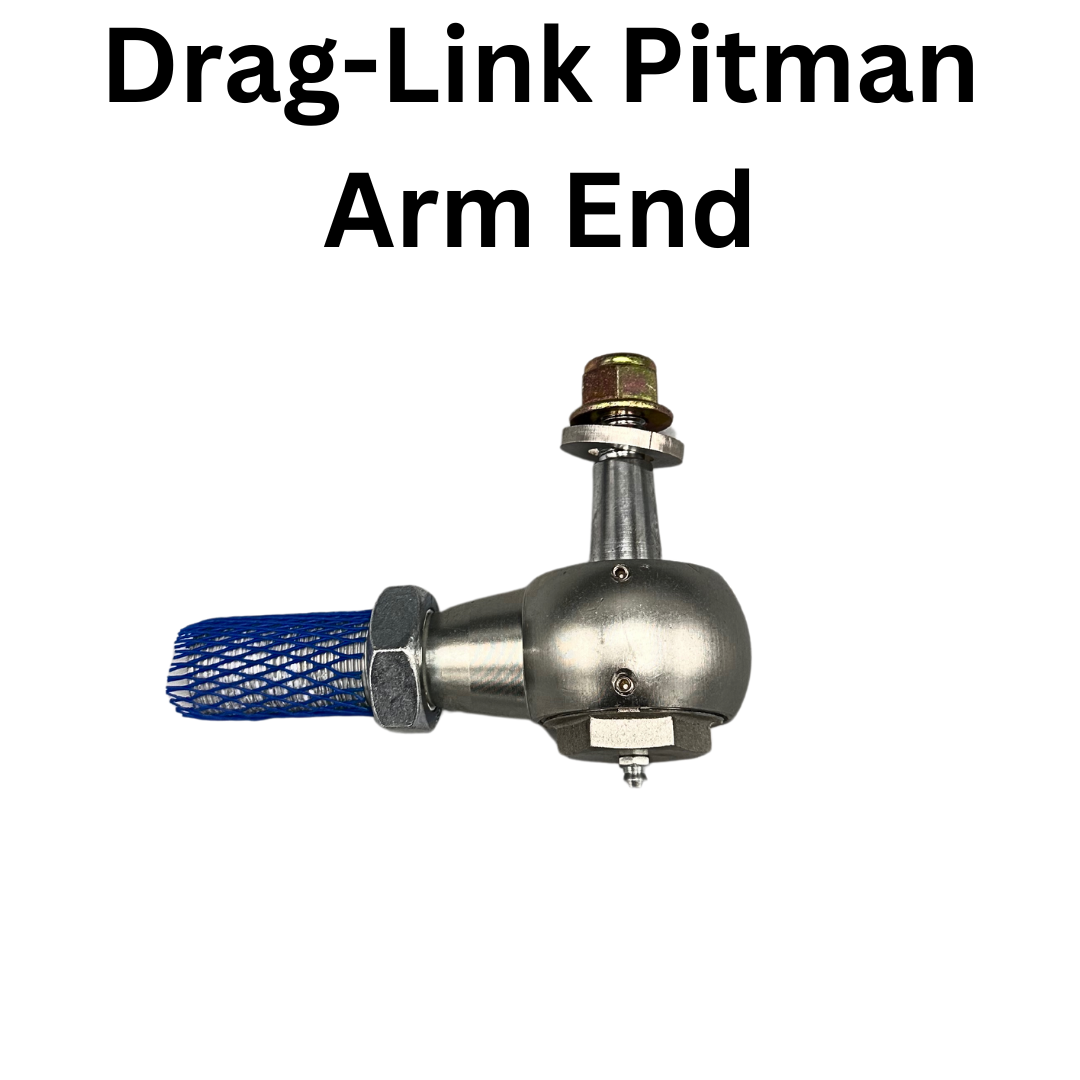

- Forged Chromoly, Heat Treated Steel ends, completely greaseable and rebuildable

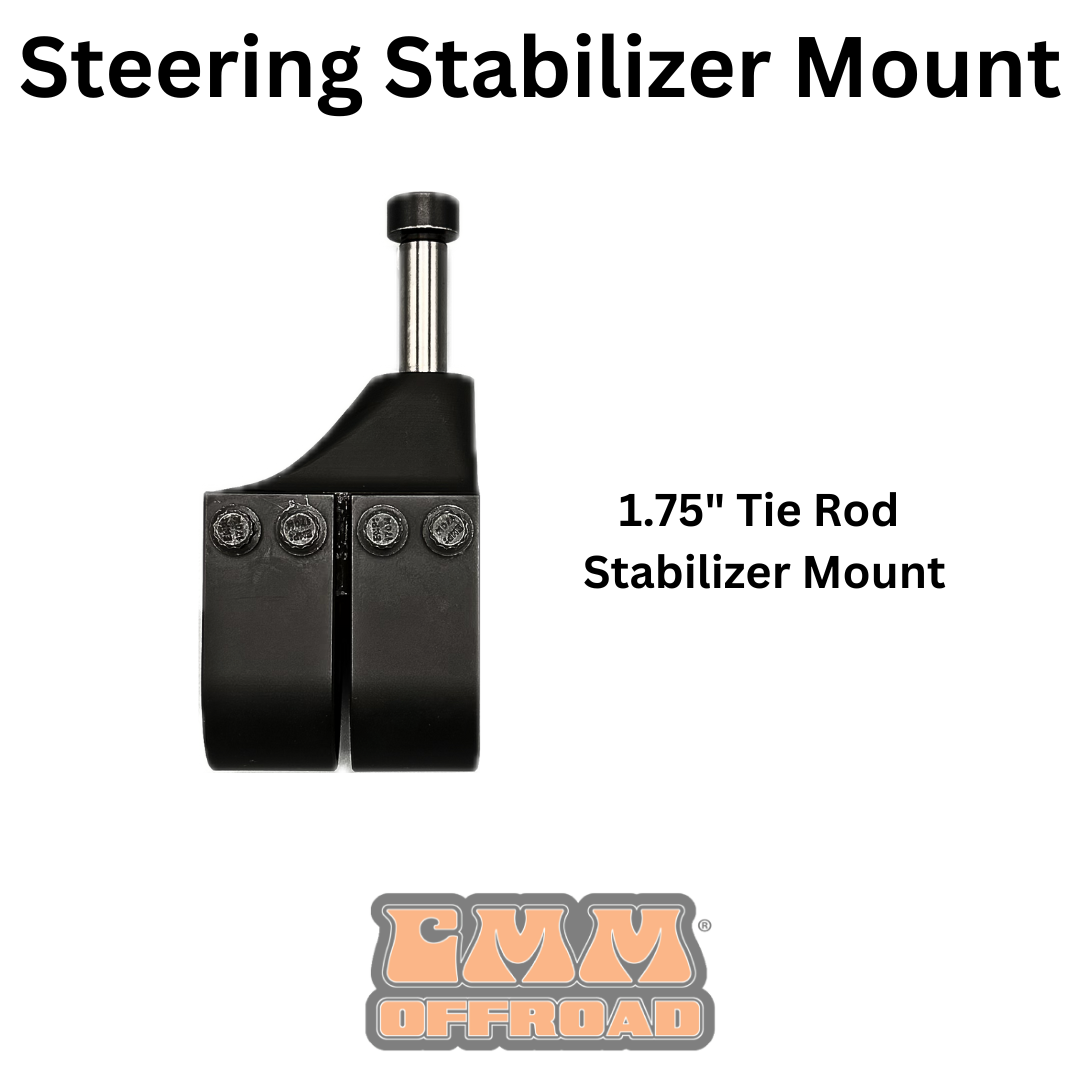

Steering Stabilizer Mounting Billet Clamp:
- Axle Side:
- Uses factory bracket
- Tie Rod Side:
- Billet aluminum construction
- All hardware included
- Shouldered stabilizer through bolt for maximum strength
Includes:
JK/JKU Tie Rod:

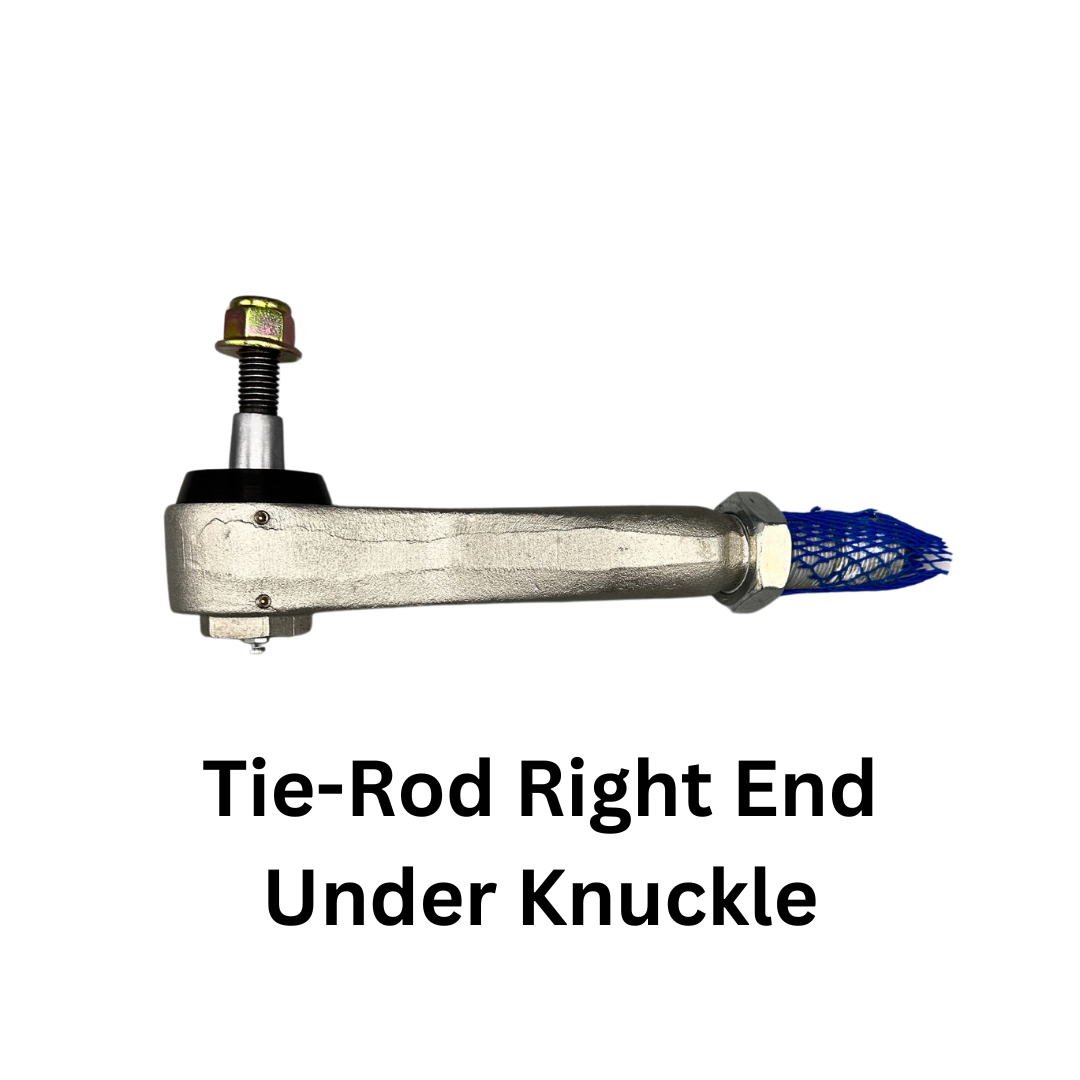

- (2) - Forged Chromoly Heat Treated Steel Ends (Completely greaseable and rebuildable)
- (1) - 1.75" Solid Aluminum Tie Rod
JK/JKU Drag-Link:
- (2) - Forged Chromoly Heat Treated Steel Ends (Completely greaseable and rebuildable)
- (1) - 1.75" Solid Aluminum Drag-Link
JK/JKU Steering Stabilizer Mounting Brackets:
- (1) - Steering Stabilizer Mount, Axle Side
- (1) - Hardware Pack
Requirements In order to use this steering :
- Will work with Stock Stabilizer, Fox 2.0, Radflo and similar.
- Will NOT work with Fox ATS Thru Shaft Stabilizer.
- Steering Requires at minimum of 17" Diameter Wheels with Maximum 4.75" Backspace
- 18" Diameter Wheels with Maximum 5.00" Backspace
